◆ Threaded entry：Metric
◆ Color ：black and grey
◆ Application temperature：-40℃-100℃，the item can also endure 120℃ instantly
◆ protection：IP68
◆ Standard：IEC698

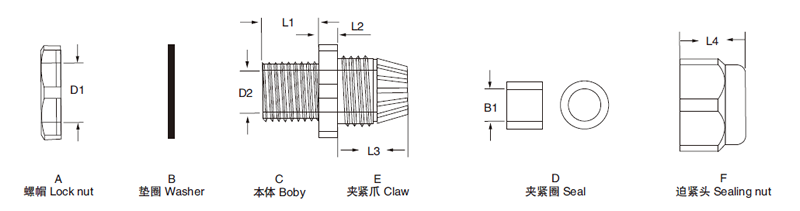

Item NO. | D1(mm) | D2(mm) | B1(mm) | L1(mm) | L4(mm) | Cable range |
| M12 ×1.5 | 12 | 8.3 | 6 | 7.9 | 13.3 | 3-6.5 |
| M16×1.5 | 16 | 10.9 | 9.6 | 15 | 15.8 | 5-10 |
| M20S×1.5 | 20 | 14.8 | 12.5 | 15 | 18.4 | 3-7 |
| M20M×1.5 | 20 | 14.8 | 12.5 | 15 | 18.4 | 6-12 |
| M20L×1.5 | 20 | 15.5 | 14.5 | 15 | 19.5 | 10-14 |
| M25×1.5 | 25 | 21 | 18.4 | 15 | 22.3 | 13-18 |
| M32×1.5 | 32 | 26 | 26.2 | 15 | 24.8 | 18-25 |
| M40×1.5 | 40 | 33 | 33.4 | 18 | 31.6 | 25-32 |
| M50×1.5 | 50 | 42.5 | 36.5 | 18 | 31.6 | 30-38 |
| M63×1.5 | 63 | 54.1 | 44 | 18.5 | 32.6 | 34-44 |
