◆ Threaded entry：Metric
◆ Color ：black and grey
◆ Application temperature：-40℃-100℃，the item can also endure 120℃ instantly.
◆ protection：IP68
◆ Standard：IEC698

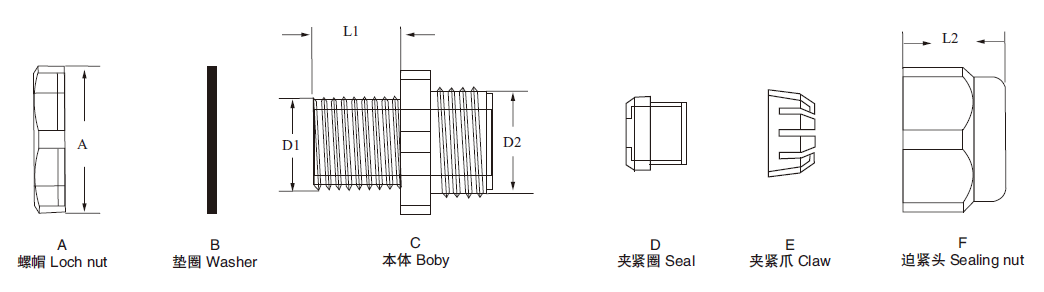

Item NO. | Threaded entry metric (mm) | Cable range φ(mm) | D1(mm) | D2(mm) | Panel mounting hole (mm) | L1(mm) | L2 (mm) | A (mm) |
| MG-12 | M12×1.25 | 7.6-4.6 | 12 | M16×1.5 | 12.5 | 8.5 | 16 | 19 |
| MG-16 | M16×1.5 | 10-6 | 16 | M20×1.5 | 16.5 | 15 | 19.5 | 24 |
| MG-20 | M20×1.5 | 14-9 | 20 | M25×1.5 | 20.5 | 15 | 21.5 | 30 |
| MG-25 | M25×1.5 | 18-13 | 25 | M31×2 | 25.5 | 15 | 24.5 | 36 |
| MG-32 | M32×1.5 | 25-18 | 32 | M38×2 | 33 | 15 | 27.5 | 46 |
| MG-40 | M40×1.5 | 30-24 | 40 | M46×2 | 41 | 20 | 31 | 54 |
| MG-50 | M50×1.5 | 39-30 | 50 | M58×2 | 51 | 23 | 37 | 67 |
| MG-63 | M63×1.5 | 48.5-40 | 63 | M72×2 | 64 | 24 | 42 | 81.5 |
