Mountable Head Cable Ties

Mountable Head Cable Ties
Online orders

Overview

◆Material：Nylon 66, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature：-40℃ to 85℃
◆Installation temperature：-20℃ to 85℃
◆Color：Natural, Black,UV black, other colors are available as requested.

Technical Parameters

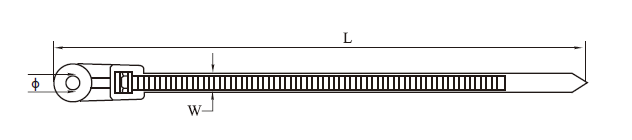

Item NO.	L		W (mm)	Max.Bundle DIA(mm)	(φ) Hole Dia.(mm)	Tensile Strength
Item NO.	Inch	mm	W (mm)	Max.Bundle DIA(mm)	(φ) Hole Dia.(mm)	LBS	KGS
110MT	4 1/3″	100	3.6	22	4.5	40	18
150MT	6″	145	3.6	32	4.5	40	18
200MT	8″	220	4.3	42	5.5	50	22
380MT	15″	381	7.6	98	6.2	120	55
