Self-locking Nylon Cable Ties

Self-locking Nylon Cable Ties
Online orders

Overview

◆ Material：Nylon 66, 94V-2 certificated by UL. Acid & erosio ncontrol, insulate well and not easy to aging、tensile strong.
◆ Application temperature：-40℃ to 85℃.
◆ Installation temperature：-35℃ to 85℃.
◆ Color: Natural,Black,UV black and other colors are available as requested.

Technical Parameters

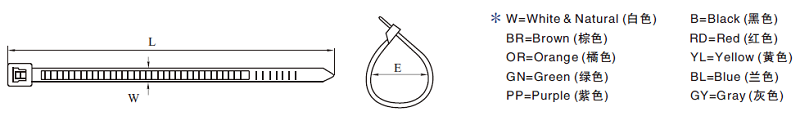

Item NO.	L		W (mm)	Max.Bundle Dia. E (mm)	Min.loop Tensile Strength
Item NO.	Inch	mm	W (mm)	Max.Bundle Dia. E (mm)	LBS	KGS
3×60	2 3/8″	60	2.5	11	18	8
3×80	3 3/16″	80	2.5	16	18	8
3×90	3 5/8″	90	2.5	18	18	8
3×100	4″	100	2.5	22	18	8
3×120	43/4″	120	2.5	28	18	8
3×140	51/2″	140	2.5	33	18	8
3×150	6″	150	2.5	35	18	8
3×160	6 1/4″	160	2.5	40	18	8
3×200	8″	200	2.5	53	18	8
3×250	10″	250	2.5	65	18	8
4×100	4″	100	3.6	22	40	18
4×120	4 3/4″	120	3.6	30	40	18
4×140	5 1/2″	140	3.6	33	40	18
4×150	6″	150	3.6	35	40	18
4×180	7″	180	3.6	44	40	18
4×200	8″	200	3.6	53	40	18
4×220	8 5/8″	220	3.6	58	40	18
4×250	10″	250	3.6	65	40	18
4×280	11″	180	3.6	70	40	18
4×300	11 5/8″	300	3.6	80	40	18
4×370	14 1/2″	370	3.6	102	40	18
5×120	4 3/4″	120	4.6	26	50	22
5×160	6 1/4″	160	4.6	39	50	22
5×180	7″	180	4.6	46	50	22
5×190	7 1/2″	190	4.6	48	50	22
5×200	8″	200	4.8	5.	50	22
5×250	10″	250	4.8	65	50	22
5×280	11″	280	4.8	70	50	22
5×300	11 8/5″	300	4.8	82	50	22
5×350	13 3/4″	350	4.8	30	50	22
5×380	15″	380	4.8	105	50	22
5×400	15 3/4″	400	4.8	108	50	22
5×430	17″	430	4.8	115	50	22
5×450	17 3/4″	450	4.8	130	50	22
5×500	19 11/16″	500	4.8	150	50	22
7×150	6″	150	6.8	33	85	38
7×180	7″	180	6.8	43	85	38
7×200	8″	200	6.8	50	85	38
7×250	10″	250	6.8	65	85	38
7×370	14 1/2″	370	7.0	98	85	38
8×200	8″	200	7.6	50	120	55
8×250	10″	250	7.6	63	120	55
8×300	11 5/8″	300	7.6	80	120	55
8×350	13 3/4″	350	7.6	90	120	55
8×370	14 1/4″	370	7.6	98	120	55
8×400	15 3/4″	400	7.6	105	120	55
8×450	17 3/4″	450	7.6	125	120	55
8×500	19 11/16″	500	7.6	145	120	55
8×550	21 1/16″	550	7.6	160	120	55
8×600	23 5/8″	600	7.6	170	120	55
8×650	25 9/16″	650	7.6	190	120	55
8×750	29 9/16″	750	7.6	220	120	55
9×200	8″	200	9.0	50	175	80
9×300	115/8″	300	9.0	78	175	80
9×400	153/4″	400	9.0	105	175	80
9×450	173/4″	450	9.0	120	175	80
9×530	20 3/4″	530	9.0	150	175	80
9×550	21 1/16″	550	9.0	160	175	80
9×600	23 5/8″	600	9.0	170	175	80
9×700	271/2″	700	9.0	205	175	80
9×812	32″	812	9.0	243	175	80
9×920	36 1/4″	920	9.0	265	175	80
9×1020	401/6″	1020	9.0	295	175	80
9×1150	45 1/4″	1150	9.0	310	175	80
9×1220	48″	1220	9.0	340	175	80
9×1350	53″	1350	9.0	380	175	80
9×1550	61″	1550	9.0	470	175	80
10×450	17 3/4″	450	10.0	125	200	91
10×500	19 11/16″	500	10.0	145	200	91
12×300	11 5/8″	300	12.0	80	250	114
12×400	15 3/4″	400	12.0	105	250	114
12×650	25 9/16″	650	12.0	190	250	114
12×750	29 9/16″	750	12.0	220	250	114
12×780	30 3/4"″	780	12.0	230	250	114
12×1000	39 3/8"″	1000	12.0	275	250	114
13×540	21 1/4″	540	13.0	155	250	114
1.8×100	4″	100	1.8	22	14	6.5
1.9×120	4 3/4″	120	1.9	28	14	6.5
1.9×150	6″	150	1.9	35	14	6.5
2.0×200	8″	200	2.0	50	14	6.5
2.2×60	2 3/8″	60	2.2	11	14	8
2.2×80	3 3/16″	80	2.2	18	18	8
2.2×100	4″	100	2.2	22	18	8
2.2×120	4 3/4″	120	2.2	28	18	8
2.2×150	6″	150	2.2	35	18	8
2.2×200	8″	200	2.9	50	18	8
2.9×150	6″	150	2.9	35	33	15
2.9×200	8″	200	2.7	50	33	15
2.7×250	10″	250	2.9	65	33	15
2.9×300	11 5/8″	300	2.9	80	33	15
3.2×150	6″	150	3.2	35	40	18
3.2×180	7″	180	3.2	42	40	18
3.2×200	8″	200	3.2	50	40	18
3.2×250	10″	250	3.2	65	40	18
3.2×300	11 5/8″	300	3.2	80	40	18
3.7×350	13 3/4″	350	3.7	90	40	18
3.7×400	15 3/4″	400	3.7	108	40	18
4.2×180	7″	180	4.2	42	50	22
4.2×200	8″	200	4.2	50	50	22
4.2×250	10″	250	4.2	65	50	22
4.2×300	11 5/8″	300	4.2	80	50	22
4.2×350	13 3/4″	350	4.2	90	50	22
4.2×380	15″	380	4.2	102	50	22
4.2×400	15 3/4″	400	4.2	105	50	22
5.2×180	7″	180	5.2	42	65	30
5.2×200	8″	200	5.2	50	65	30
5.2×250	10″	250	5.2	65	65	30
5.2×300	11 5/8″	300	5.2	80	65	30
5.5×350	13 3/4″	350	5.5	90	65	30
5.5×400	15 3/4″	400	5.5	105	65	30
5.5×500	19 11/16″	500	5.5	150	65	30
6.0×270	10 5/8″	270	6.0	65	65	30
6.5×250	10″	250	6.5	65	85	38
6.5×300	11 5/8″	300	6.5	80	85	38
6.5×350	13 3/4″	350	6.5	90	85	38
6.5×400	15 3/4″	400	6.5	105	85	38
6.5×450	17 3/4″	450	6.5	125	85	38
6.5×500	19 11/16″	500	6.5	145	85	38
