Double Locking Cable Ties

Double Locking Cable Ties
Online orders

Overview

◆Material：Nylon 6.6 or nylon 12, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature：-40℃ to 85℃
◆Installation temperature：-20℃ to 85℃
◆Color：Black,UV black
◆Feature：Tensile strong and not easy to trip.

Technical Parameters

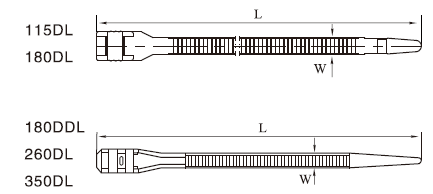

Item NO.	L		W (mm)	Max.Bundle DIA.(mm)	Tensile Strength
Item NO.	Inch	mm	W (mm)	Max.Bundle DIA.(mm)	PA12(KGS)	PA66(KGS)
115DL	5 1/8″	115	6.0	22	18	35
180DL	7″	180	6.0	45	18	35
180DDL	7″	180	9.0	45	25	40
260DL	10 1/4″	260	9.0	66	40	50
350DL	13 5/8″	350	9.0	90	40	50
