Cedar Type Tie Holder

Cedar Type Tie Holder
Online orders

Cedar Type Tie Holder

Product introduction

◆Material: Heat stabilised(PA66HS).

◆Application temperature:-40℃-105℃.

◆Features: lt is only necessary to install the head on a bolt and fix it with anut. lt is a strong shock resistant structure, which can also be used inoutdoor and high-temperature environments.

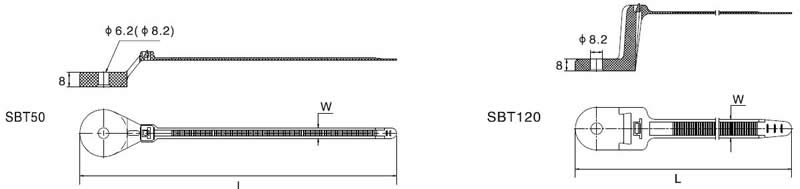

Technical parameter

Item NO.	L		W （mm）	Max.Bundle DIA.（mm）	Tensile Strength		（φ） Hole Dia.	Panel Thickness
Item NO.	Inch	mm	W （mm）	Max.Bundle DIA.（mm）	LBS	KGS	mm	mm
SBT50-M6	7.1/10''	180	6.0	35	50	22	6.2	M6
SBT50-M8	7.1/10''	180	6.0	35	50	22	8.2	M8
SBT120-M8	12''	300	13.0	60	120	55	8.2	M8
