Chassis cable tie

Chassis cable tie
Online orders

Overview

◆ Description: Two-piece design, Buckle and strap are one assembly.Zero insertion force. First loop is releasable prior to final tensioning.
◆ Material: Nylon 66, 94V-2 certificated by UL.Heat-resisting,Acid&erosion control, insulate well and not apt to age.

Technical Parameters

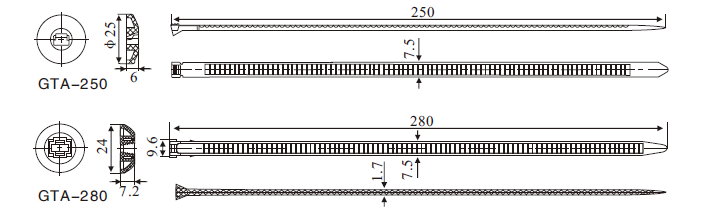

Item NO.	L (mm)	W (mm)	Max.Bundle Dia. E (mm)	Min.loop Tensile Strength		Remark
Item NO.	L (mm)	W (mm)	Max.Bundle Dia. E (mm)	LBS	KGS	Remark
GTA-250	250	7.5	60	100	45	Single Tooth
GTA-280	280	7.5	65	110	50	Double Tooth
